| Part number | 6770005 |
|

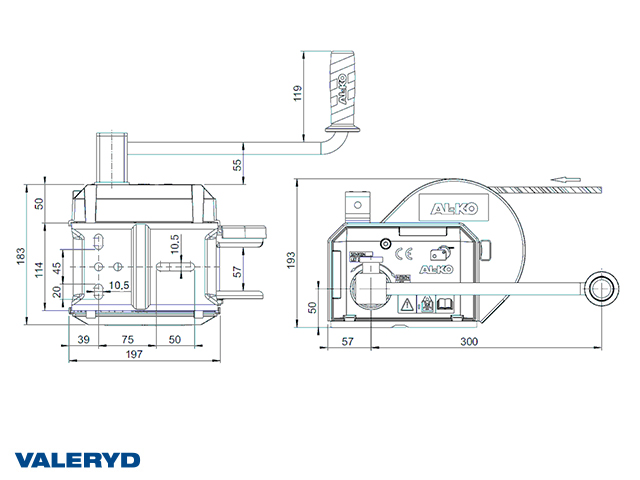

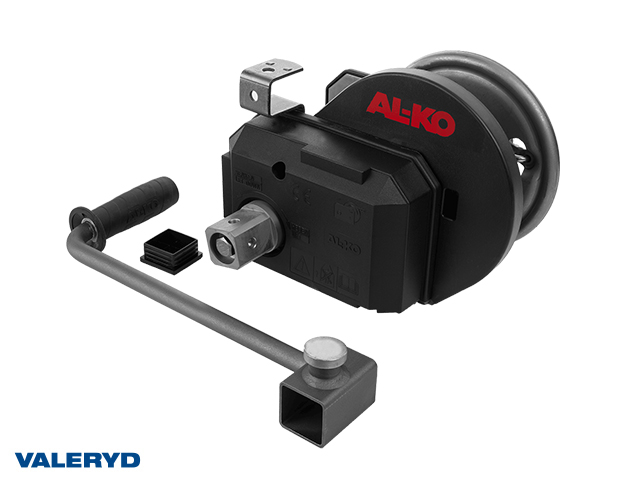

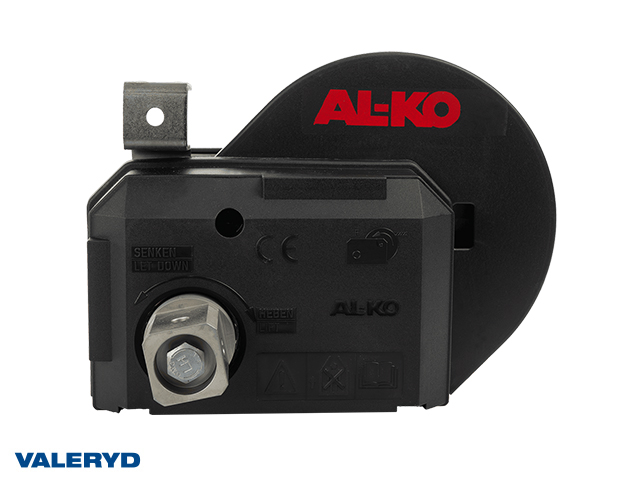

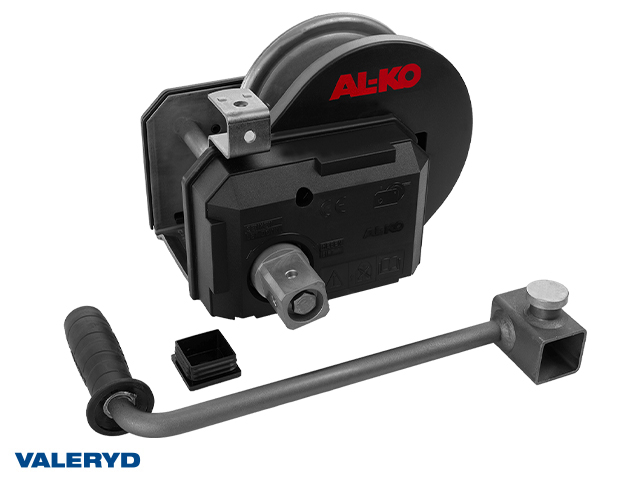

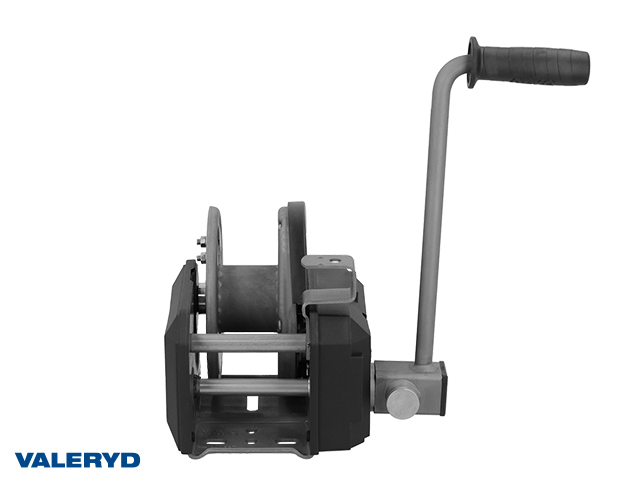

Braked with automatic unwinder.
Tensile load: 900 kg Minimum load: 25 kg Reduction: 8.75:1 Manual force: 190N (19kg) Drum capacity wire Ø7mm: 20m Removable crank Without strap 1730014, 1730186 Operation of the cable winch Lift: Turn the hand crank in a clockwise direction Stop: Let go of the hand crank in any position (automatic load pressure brake) Lower: Turn the hand crank in a counter-clockwise direction Automatic unwinder operation 1. Turn the hand crank in a counter-clockwise direction for one rotation, this will cause the load pressure brake to be deactivated 2. Pull up locking sleeve 3. Remove crank 4. The band or cable can now be removed |
|
)
|
|
|
|||||||||||
=
